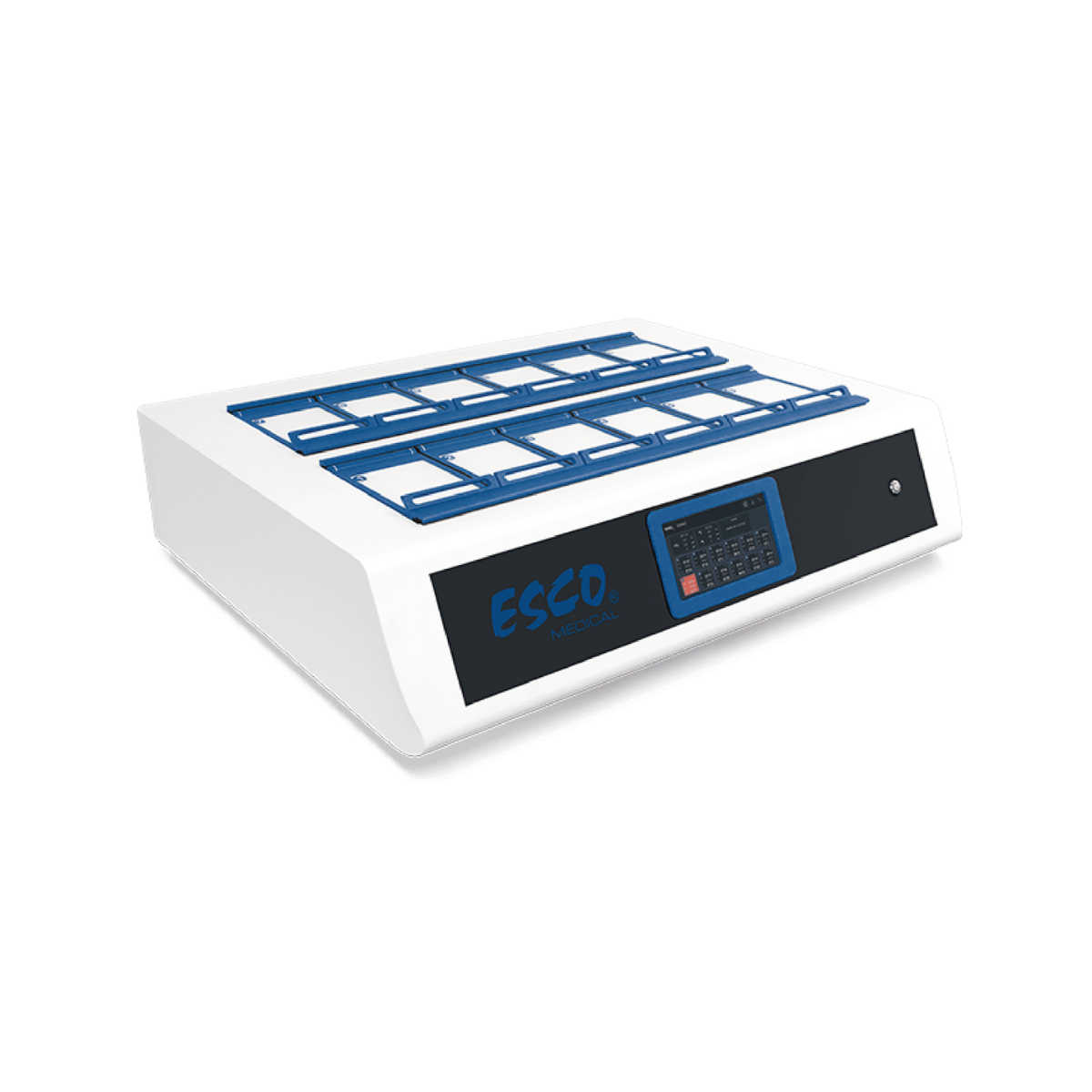

ESCO MIRI II IVF Incubator

The Esco Medical MIRI® II-12 Multiroom Incubator is intended to be used to provide a stable culture environment at or near body temperature and CO2 and N2 gasses for the development of gametes and embryos during In Vitro Fertilization (IVF) and Assisted Reproduction Technology (ART) treatments.

PRODUCT SPECIFICATIONS

Horizontal multi-chamber incubator, modelMIRI II (MRI 12-12C-9).

• 12 fully independent chambers with capacity up to 24 dishes
• Direct heat transfer with temperature recovery < 1 minute
• Heated chamber lids to prevent condensation and improve stability
• HEPA-VOC filtration plus UV sterilization
• Independent CO₂ and O₂ control with recovery < 3 minutes (no premixed gas required)
• Independent temperature control per chamber with 24 control points
• Writable fiberglass lids for sample identification
• Removable inserts for improved heat contact and easy cleaning
• External sensor ports for parameter validation without opening chambers
• PC connectivity and external alarm interface (not included)
• Stackable (optional rack MRA1014)
• Touchscreen control panel
• pH electrode connector with on-screen display

Technical Specifications

• Dimensions: 739 × 580 × 194 mm
• Electrical: 110 V / 60 Hz
• Power: 530 W
• O₂ range: 5–20%
• CO₂ range: 1.9–10%
• Temperature: ambient to 40 °C
• Gas input pressure: 0.6 bar (CO₂ and N₂)
• Net weight: 60 kg
• Certification: FDA – MDD Class IIA
