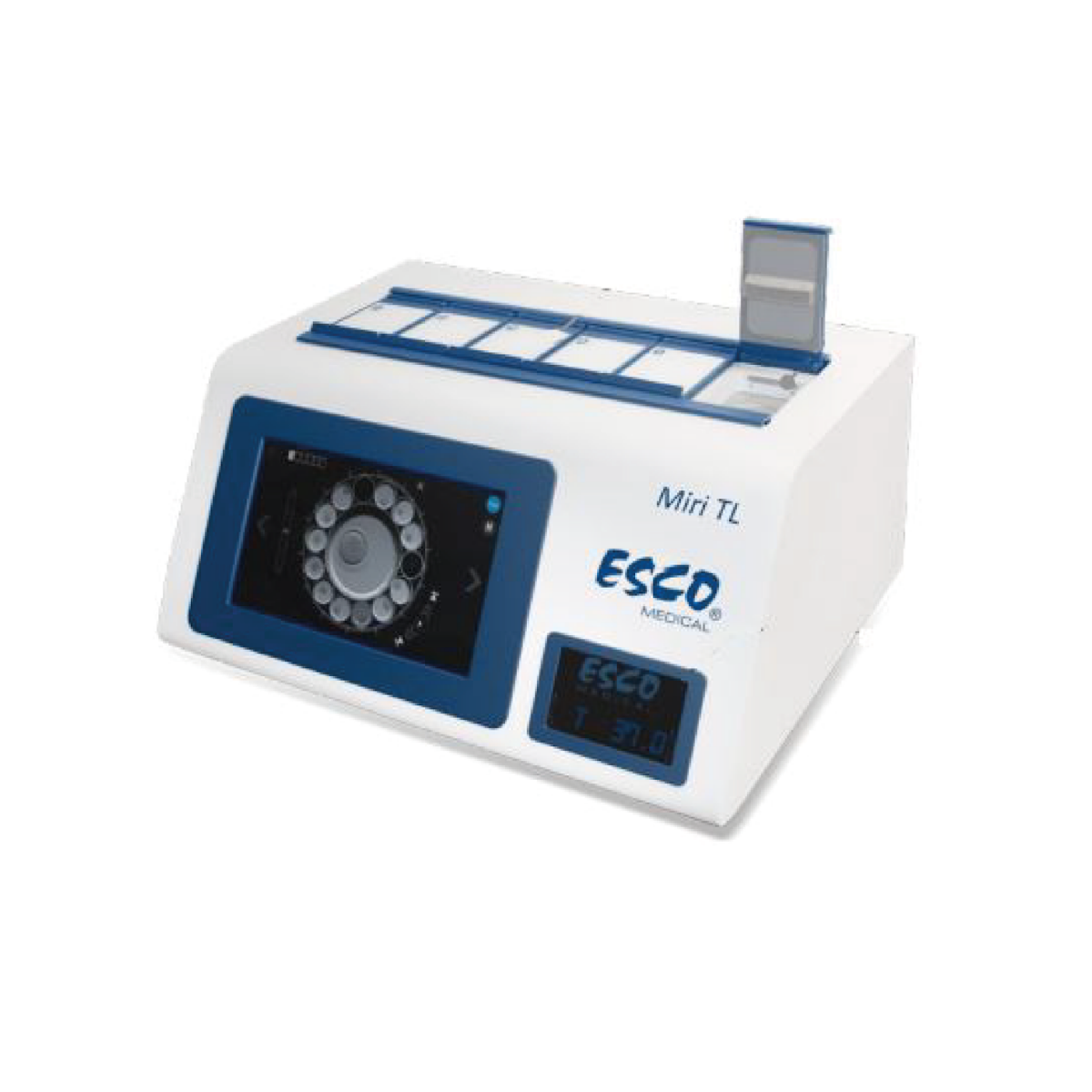

ESCO MIRI TL Time-Lapse Incubator

The MIRI® Time-Lapse Incubator is a multiroom incubator with a built-in camera and microscope. Designed and manufactured in EU, the MIRI® Time-Lapse Incubator provides high quality time-lapse images of embryos developing in “real-time” without having to remove the embryos from the safety of the incubation chamber for manual microscopy. Time-lapse embryo monitoring provides detailed morphokinetic data throughout embryo development, which is not available on routine spot microscopic evaluation. This allows all important events to be observed, helping to identify healthy embryos with the highest probability of implantation, with the aim of achieving higher pregnancy rates.

PRODUCT SPECIFICATIONS

Time-lapse embryo monitoring incubator, modelMIRI TL (6 chambers).
Compatible withCHLOE AI system.

Designed specifically for IVF clinics to maximize pregnancy success rates.

Key Features

Quiet Embryo Environment

Minimizes stress from dish handling and allows continuous monitoring via time-lapse imaging.

Time-Lapse Monitoring

• Images every 5 minutes
• 6 physically separated chambers
• Up to 6 patients simultaneously
• Capacity up to 84 embryos

Advanced Temperature Regulation

• Direct heating and thermal lid
• CO₂ + N₂ mixing with suppressed O₂
• Fast recovery

Common Stress Factors Controlled

• Temperature fluctuations
• Gas fluctuations
• pH instability
• VOCs

Time-Lapse Platform

Includes image stacking and advanced visualization tools to assess embryo viability.

Capacity

• 14 embryos per CultureCoin
• 1 CultureCoin per chamber
• Total capacity: 84 embryos

Embryo Assessment Tools

Event annotation, timeline comparison, and transfer map to identify embryos for transfer, cryopreservation, or discard.

Monitoring & Data Logging

Tracks temperature, CO₂, O₂, alarms, and includes integrated pH sensor.

Advanced Temperature Control

Each chamber has two sensors (base and lid) with no thermal crossover.

Additional Features

• Writable glass lids
• Large display
• External alarm port
• HEPA + VOC filtration
• UV-C sterilization (254 nm)
• Continuous pH monitoring (Safe Sense system)
