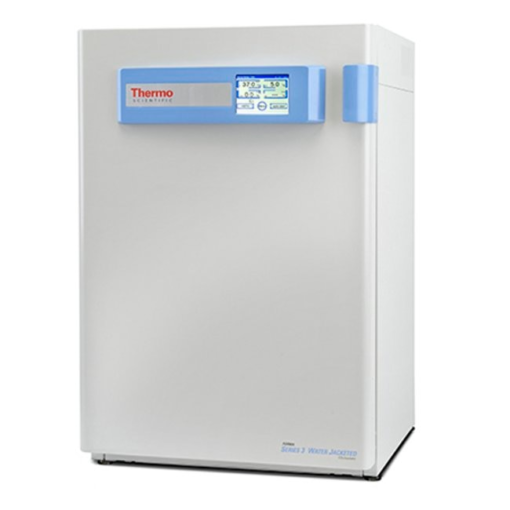

Forma™ Series 3 Water Jacketed CO2 Incubator, 184 L, Polished Stainless Steel

Category:

Precisely control the CO2 and temperature with Thermo Scientific™ Forma™ Series III Water-Jacketed CO2 Incubators, which combine precise control with a choice of TC or IR sensors. Featuring superior parameter recovery characteristics with innovative, continuous contamination control technology.

Features:

Water Jacketed Chamber

  • The 184L (6.5 cu. ft.) high capacity chamber provides outstanding culturing space
  • Standard right hand door swing, field reversible
  • Polished stainless steel interior with coved corners is easy-to-clean with removable humidity pan
  • Unique triple wall construction provides outstanding temperature uniformity and stability
  • Exclusive, heated dual pane inner glass door is designed to minimize condensation
  • In-chamber fan gently distributes air throughout the chamber which is designed ensure homogeneous conditions
  • Sturdy stainless steel shelves and supports can be removed without tools for easy cleaning or adjustment

ISO Class 5 HEPA Filtration Airflow System

  • In-chamber HEPA air filtration continuously filters entire chamber volume every 60 seconds
  • Reaches ISO Class 5 (Class 100) cleanroom air quality in only 5 minutes after door opening
  • Continuous protection by minimizing ability for contaminants to settle on interior surfaces

In situ Sensors and Probes Designed for Precise Monitoring

  • Choice of  TC (thermal conductivity) CO2 sensor for long, reliable operation or  IR (infrared) CO2 sensor  for monitoring when humidity and temperature are less predictable
  • Dual temperature probes with over temperature protection
  • Optional rH display for monitoring humidity levels to prevent “dry-outs”

Enviro-Scan Microprocessor Control

  • Easy- to-use, alphanumeric LED display
  • Flexible, intuitive controls with message center including process and alarm status messages
  • Configurable audible on/off, access code, tracking low and high alarms

The Series 3 models (41XX) are FDA 510k registered as suitable for use with patient samples.

Specifications:

Chamber Material Polished stainless steel
CO2 Concentration Range 0 to 20%
CO2 Sensor Technology TC or IR sensor
Oxygen Control 1 to 21%
Humidity Delivery Water Pan
Relative Humidity >90% at 37°C
Temperature Range (Metric) Ambient +5° to 50°C
Data Outputs Optional 4-20mA
Certifications/Compliance UL, cUL, CE
Dimensions (D x W x H) Interior 20 x 21.3 x 26.8 in. (50.8 x 54.1 x 68.1cm)
Capacity 6.5 cu.ft., 184L
Electrical Requirements 115V 50/60Hz
Description CO2  184L incubator, 1-20%
Net Weight 365 lb, 166kg
